LMT 1417 / 1717 Basic

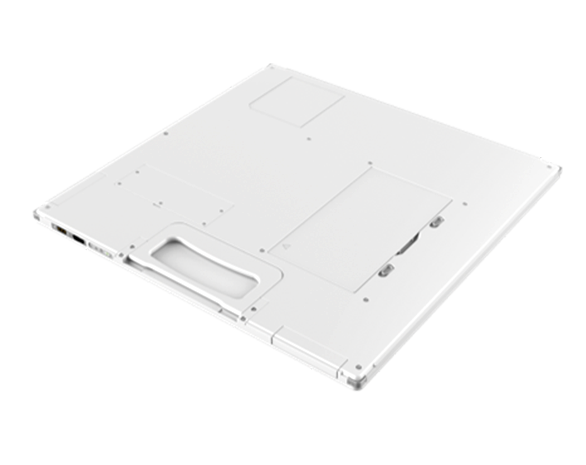

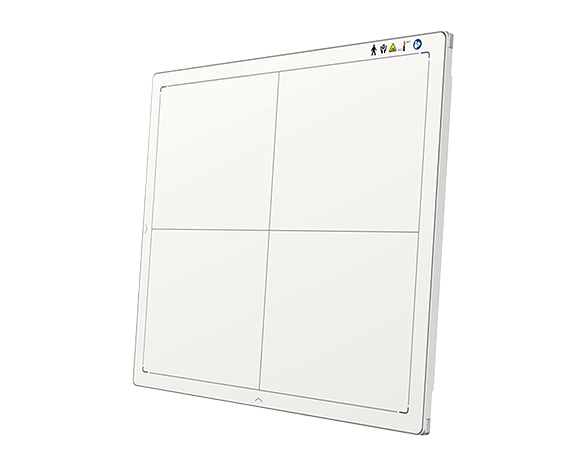

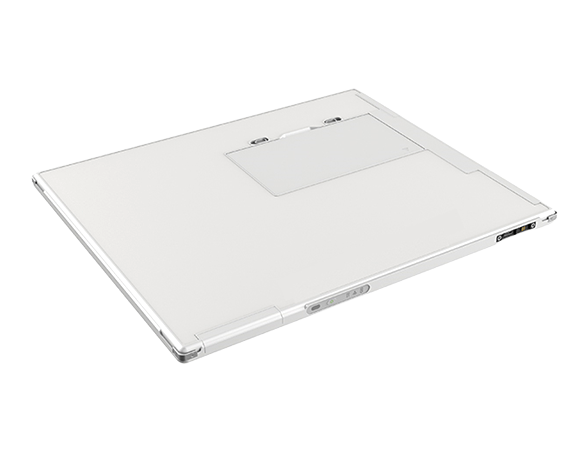

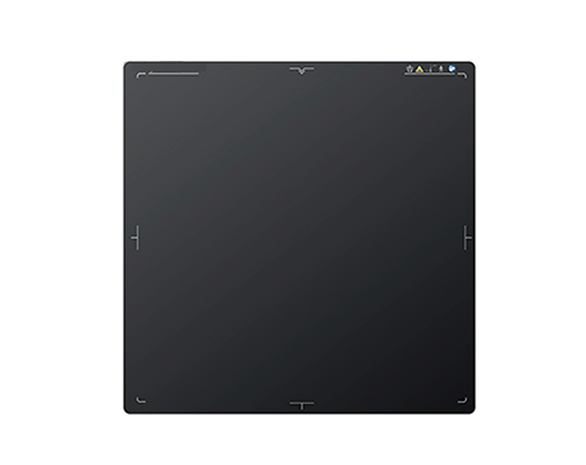

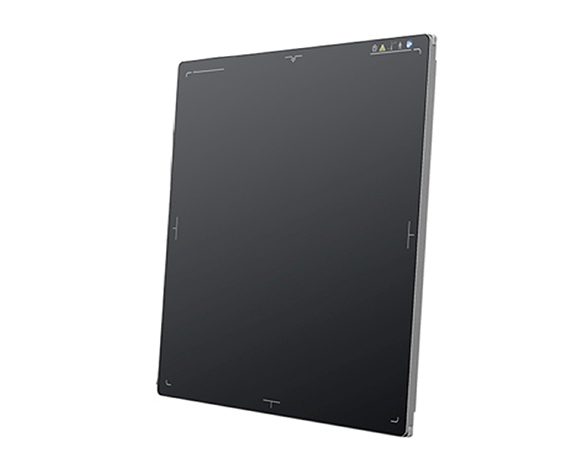

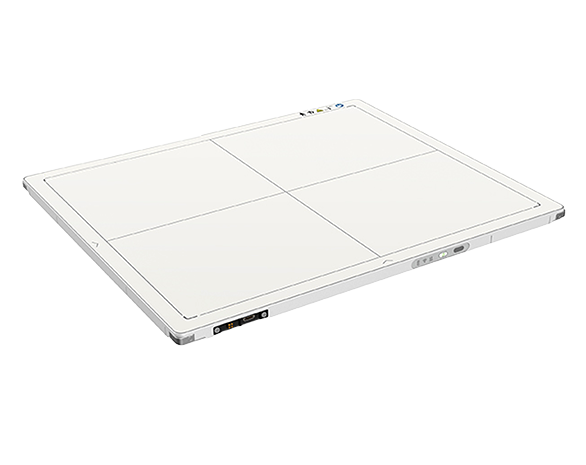

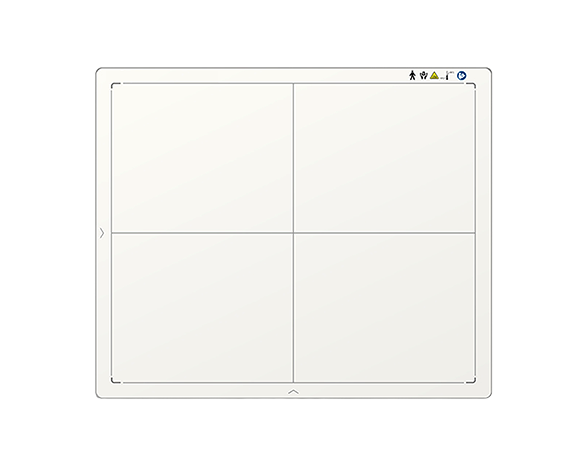

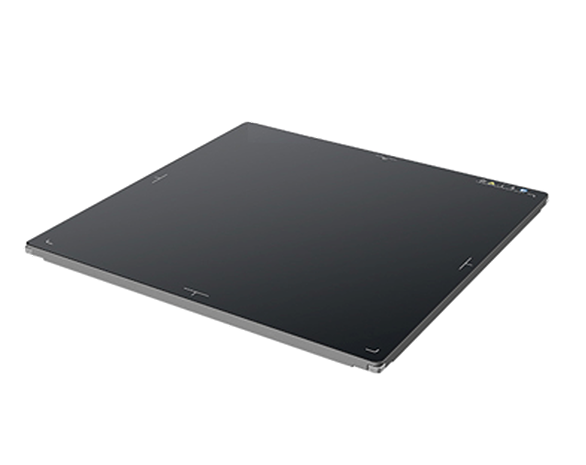

Introducing the LMT 1417/1717 Basic
A smart, wireless FPD designed for radiography imaging.
With reliable AED technology, seamless wireless performance, and a long battery life, this cassette-sized panel supports a fast workflow with ease
Whether you're retrofitting existing equipment or implementing new DR systems, the LMT 1417/1717 Basic is the optimal choice,
offering dependable performance and exceptional image quality for efficient patient care.
Specifications
| LMT 1417 Basic | LMT 1717 Basic | |
|---|---|---|
| Detector Technology | a-Si | a-Si |
| Scintillator | CsI | CsI |
| Active Area (inch) | 14 × 17 | 17 × 17 |
| Pixel Matrix | 2304 x 2800 | 3072 x 3072 |
| Pixel Pitch (μm) | 150 | 139 |
| Weight (kg) | 3.3 | 4.6 |
Key Features
01Direct deposition CsI for enhanced image quality at low doses.
02Long battery life and streamlined workflow for uninterrupted imaging sessions.
03Dual-band (2.4 and 5GHz) wireless support enables easy sharing and connectivity.
04Wireless cassette detector per ISO 4090, seamlessly fits into standard bucky.
05150 μm pixel pitch, coupled with 16-bit ADC, ensures precise image detail capture.
06Stable iSync+ Automatic Exposure Detection (AED) guarantees consistent performance.
Technical

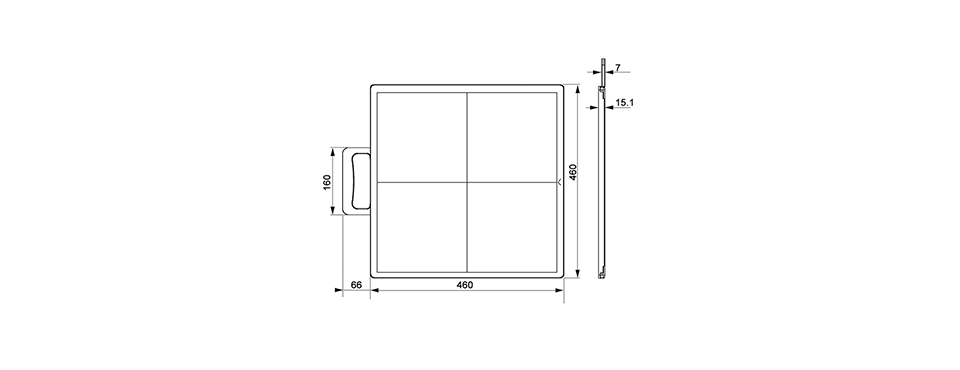

Drawing
