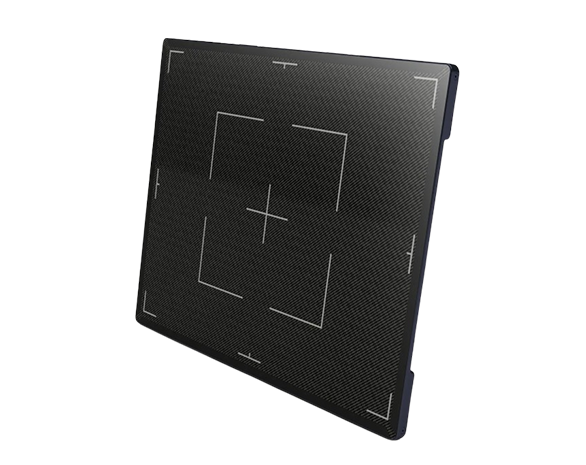

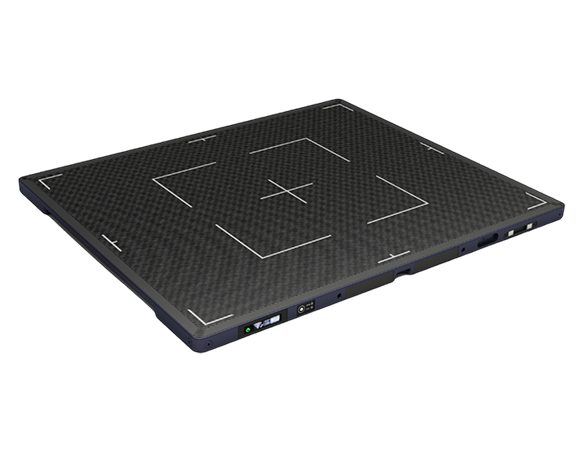

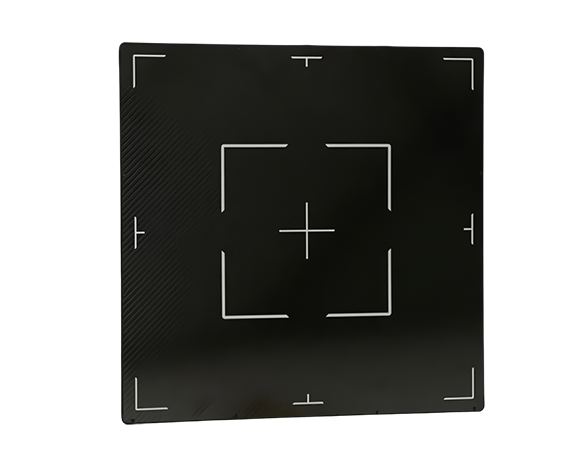

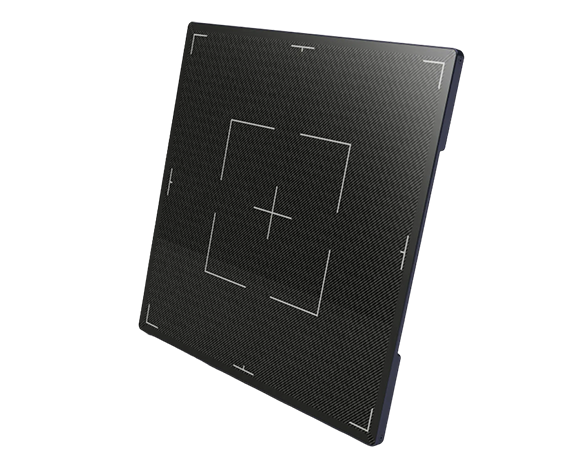

LMT 1417 / 1717 Flex
Introducing the LMT 1417/1717 Flex
An innovative imaging solution engineered with
state-of-the-art IGZO Non-Glass TFT technology, ensuring high-quality images
and unmatched durability across a wide range of applications.
With its Ultra high-sensitive 2xAED technology, the LMT Flex Panel offers significantly enhanced sensitivity during detection,
surpassing competitors' capabilities. Experience superior imaging performance and reliability with the LMT Flex Panel,
setting new standards in diagnostic accuracy and efficiency.
Specifications
| LMT 1417 Flex | LMT 1717 Flex | |
|---|---|---|
| Detector Technology | IGZO / a-Si | IGZO / a-Si |
| Scintillator | CsI/GOS | CsI/GOS |
| Active Area (inch) | 14 × 17 | 17 × 17 |
| Pixel Matrix | 2500 x 3052 | 3072 x 3072 |
| Pixel Pitch (μm) | 140 | 140 |
| Weight (kg) | 2.4 | 3 |
Key Features
01Specifically designed IGZO TFT for high sensitivity.
02A robust non-glass TFT ensures the finest image quality and durability in any application.
03Ultra-high-sensitive 2xAED technology detects X-rays with high sensitivity while minimizing errors.

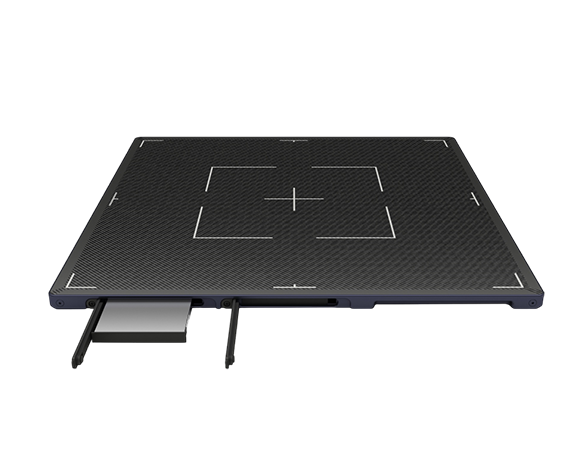

04Dual battery insertions for extended battery life.
05Supports weight bearing up to 500 kg and point bearing up to 150 kg.

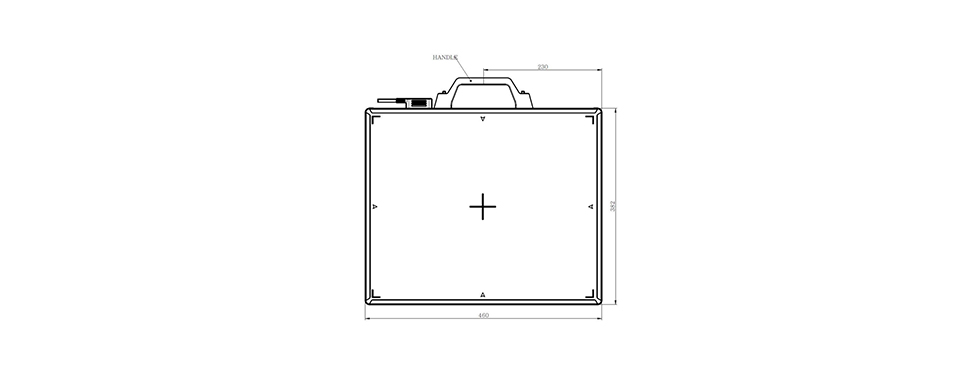

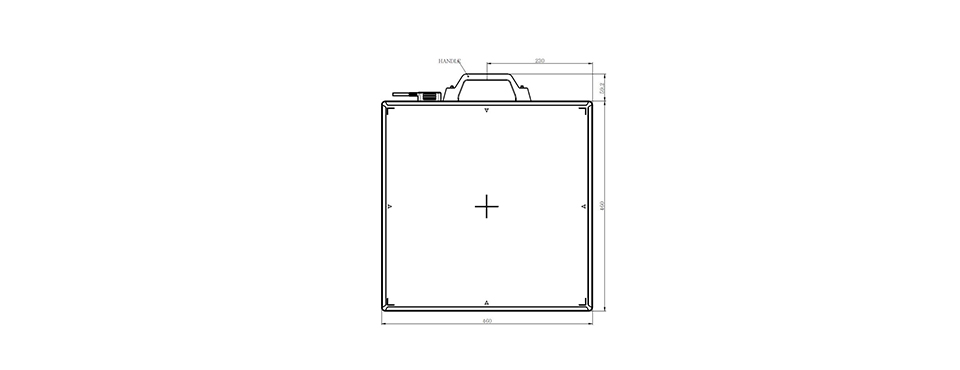

Technical
Drawing
