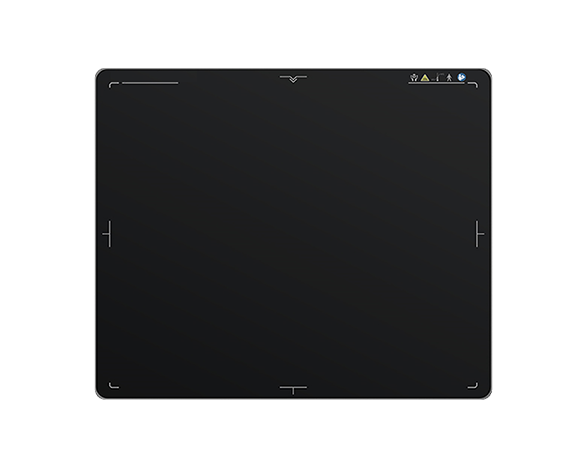

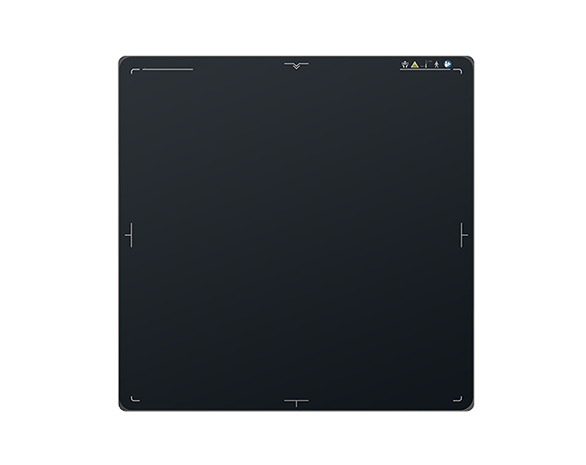

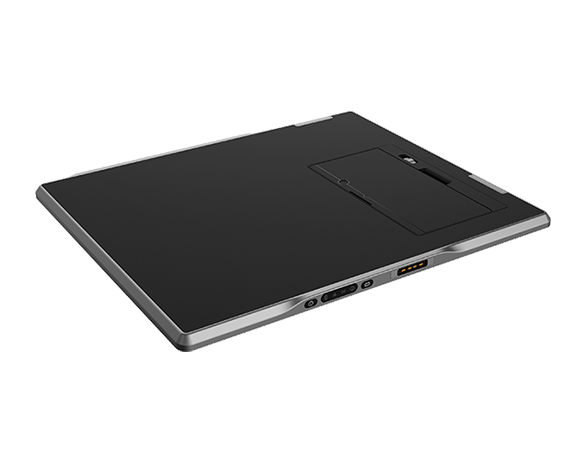

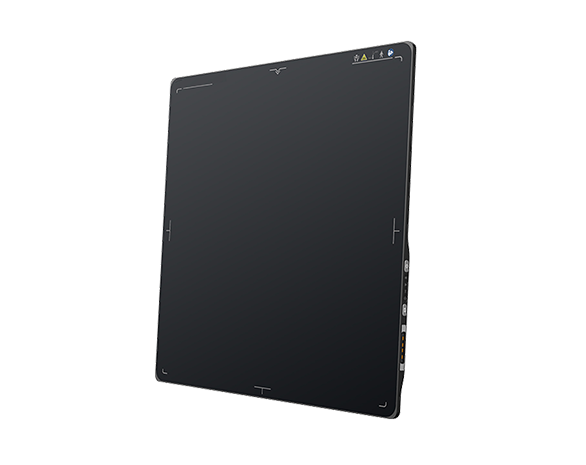

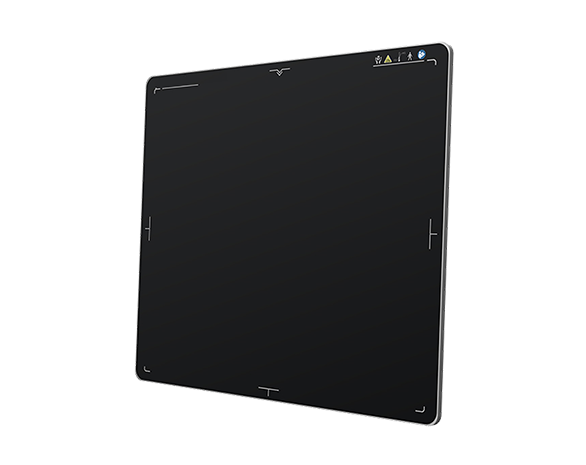

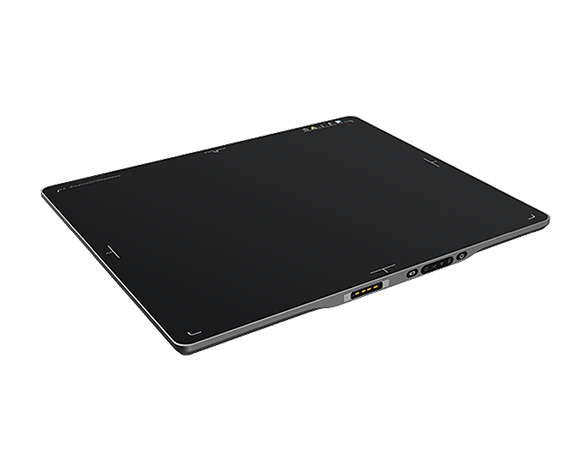

LMT 1417 / 1717 Ultra

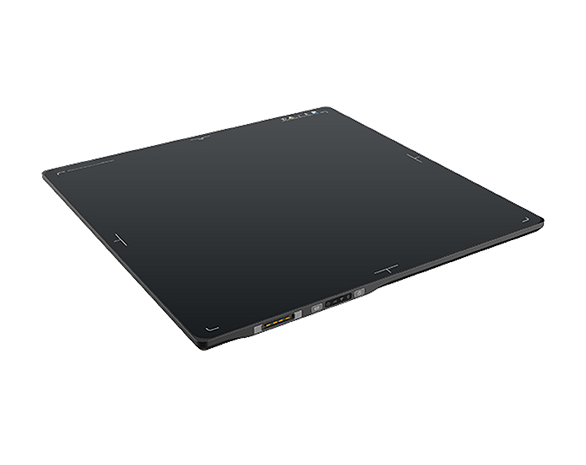

Introducing the LMT 1417/1717 Ultra
The pinnacle of wireless radiographic imaging, encapsulated
in a compact cassette-sized flat panel detector.
Boasting a 100 μm pixel pitch paired with direct deposition CsI, it delivers unparalleled image precision.
Engineered with cutting-edge features including a lightweight housing design with IP56 ingress protection, in-tray battery charging,
and intelligent automatic exposure detection (iAED), the LMT1417/1717 Ultra redefines imaging convenience and reliability.
With its exceptional image quality, this panel stands as the ideal choice for high-end DR systems,
promising uncompromised diagnostic accuracy and efficiency.
Specifications
| LMT 1417 Ultra | LMT 1717 Ultra | |
|---|---|---|
| Detector Technology | a-Si | a-Si |
| Scintillator | CsI | CsI |
| Active Area (inch) | 14 × 17 | 17 × 17 |
| Pixel Matrix | 3500 x 4300 | 4267 x 4267 |
| Pixel Pitch (μm) | 100 | 100 |
| Weight (kg) | 3 | 3.4 |
Key Features
01Large-capacity battery design, providing 8+ hours of battery life.
02Wireless cassette detector compliant with ISO 4090, designed to fit in a bucky.
03Best-in-class 100 μm pixel pitch with a 16-bit ADC for enhanced image detail.
04Dual battery slots for extended battery life.
05Direct deposition CsI with excellent DQE at all frequencies.
06Full AED control, enabling exposure at any time.

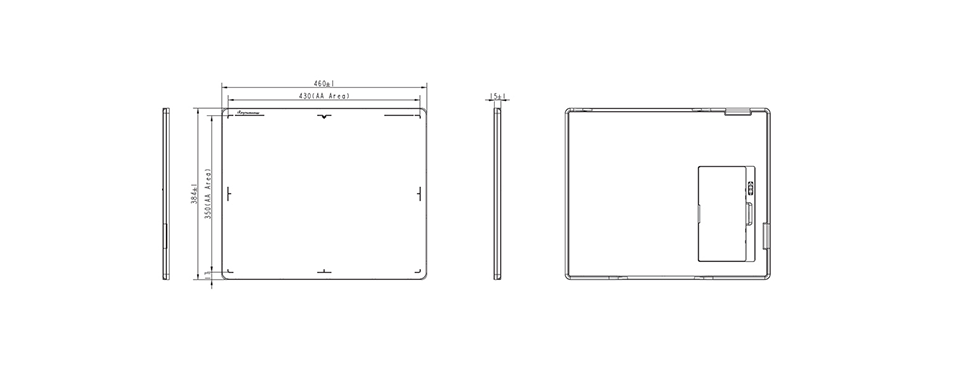

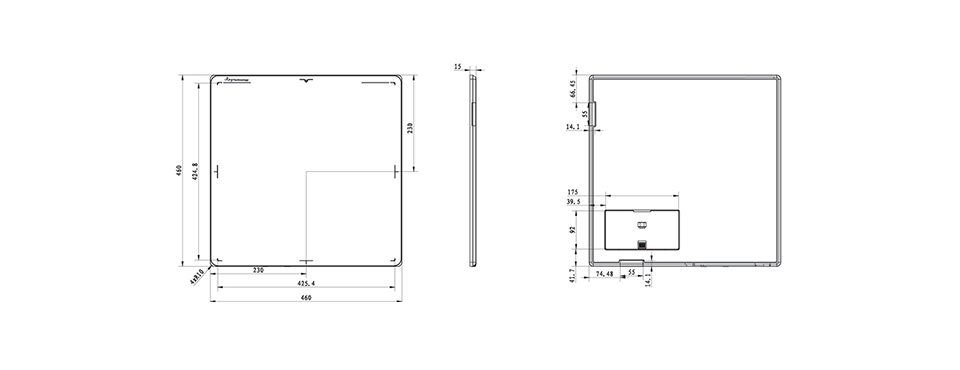

Technical
Drawing
